Connector Installation Note

  1. Connect the connector and pull the lock lever up in the direction of the arrow.
  2. After connecting the connector, verify that the connector cover is completely pushed in.

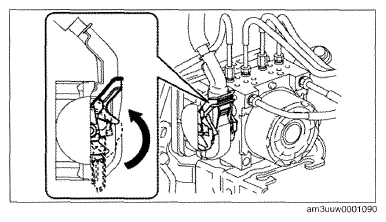

    Fig 1: Pulling Lock Lever
    G09783072Courtesy of MAZDA MOTORS CORP.
