LED Illumination inspection

  1. Remove the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION .
  2. Apply battery positive voltage to cluster switch terminal J, and connect terminal I to ground.
  3. Verify that the LED illuminates.
    • If there is any malfunction, replace the cluster switch.

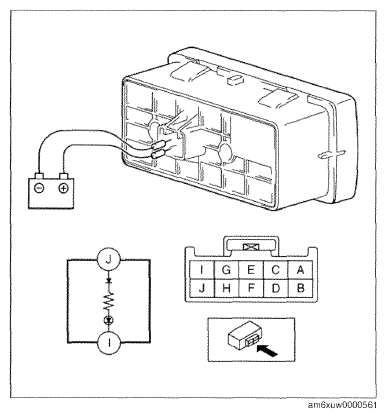

      Fig 1: Applying Battery Positive Voltage To Cluster Switch Terminal
      G09783083Courtesy of MAZDA MOTORS CORP.
