Clearance Inspection

Measure the gap between the ABS sensor rotor and ABS wheel-speed sensor using a feeler gauge.
- If not within the specification, verify the following items and repair or replace if necessary.
  - Is there deformation or damage to the ABS sensor rotor?
  - Is there deformation or damage to the ABS wheel speed sensor?
  - Is there foreign matter adhering?
Clearance

0.88-1.52 mm {0.035-0.059 in}

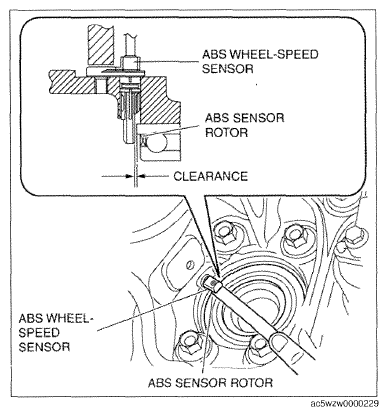

Fig 1: Measuring Gap Between ABS Sensor Rotor And ABS Wheel-Speed Sensor
Courtesy of MAZDA MOTORS CORP.
