Front Accessory Socket Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the following parts:
1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
2. Decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
3. Upper panel (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
4. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION .)
5. Shift lever knob (MTX) (See MANUAL TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION [C66M-R] .)
6. Selector lever knob (ATX) (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
7. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
8. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
9. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
10. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
11. Front accessory socket (See FRONT ACCESSORY SOCKET REMOVAL/INSTALLATION .)

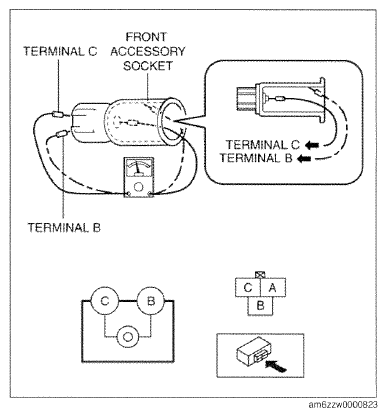

Connect the tester probe to the position shown in the figure and verify that there is continuity. FRONT
- If it cannot be verified, replace the front accessory socket.

  Fig 1: Connecting Tester Probe To Center Accessory Socket And Terminals
  Courtesy of MAZDA MOTORS CORP.
