Engine Compartment

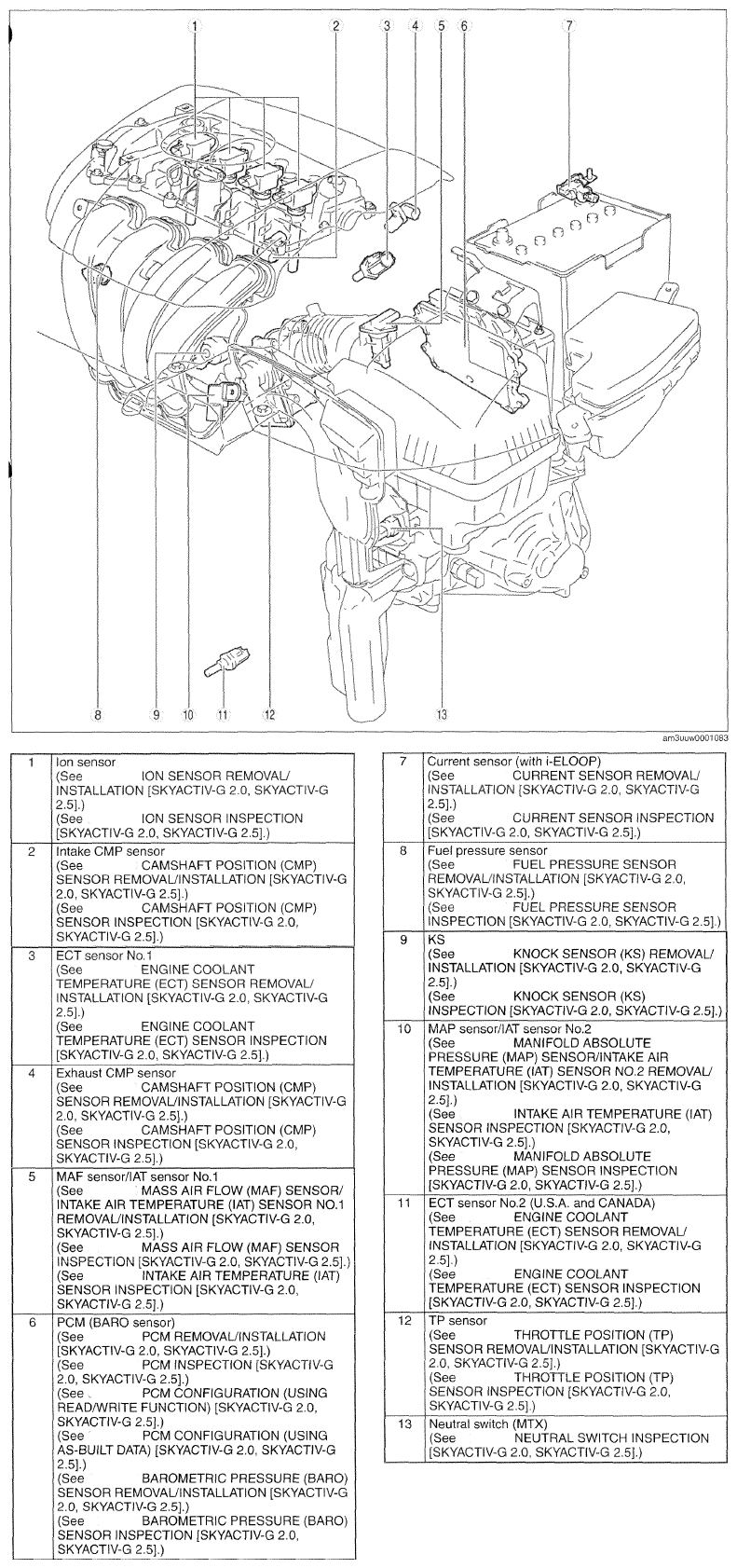

Fig 1: Control System Location (SKYACTIV-G 2.0, SKYACTIV-G 2.5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
