Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor No. 1 Removal/Installation

NOTE:

Because the IAT sensor No. 1 is integrated in the MAF sensor, replacing the IAT sensor No. 1 includes replacement of the MAF sensor/IAT sensor No. 1.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Disconnect the MAF sensor/IAT sensor No. 1 connector.
Remove the MAF sensor/IAT sensor No. 1.
Install in the reverse order of removal.

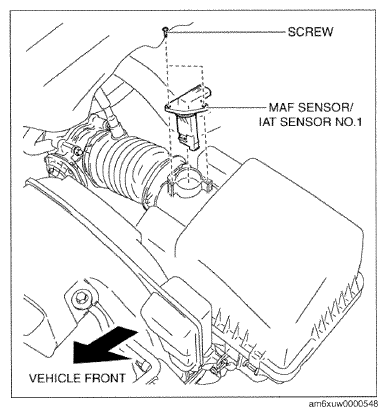

Fig 1: Removing MAF Sensor/IAT Sensor No. 1
Courtesy of MAZDA MOTORS CORP.
