Back-up Ring Installation Note

  1. Install the back-up ring being, making sure it is installed in the right direction.

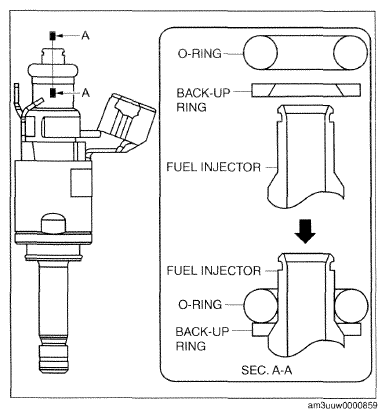

    Fig 1: Installing Back-Up Ring
    G09758531Courtesy of MAZDA MOTORS CORP.
  2. After installing the back-up ring, verify that it is installed correctly.

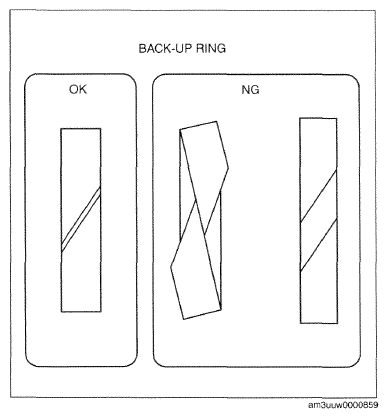

    Fig 2: Identifying Back-Up Ring
    G09758532Courtesy of MAZDA MOTORS CORP.
