Stopper Ring installation Note

NOTE:

Do not insert the stopper ring at an angle, and always press it on straight to the SST.

Set a new stopper ring on the SST as shown in the figure being careful of the stopper ring orientation, and press down the fuel injector until a click sound is heard.

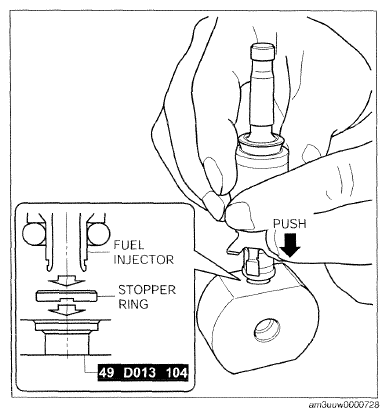

Fig 1: Setting Stopper Ring On SST
Courtesy of MAZDA MOTORS CORP.
