Teflon Seal Removal Note

NOTE:
  • When stretching the teflon seal, do not damage the fuel injector with the tool.
  1. Stretch the teflon seal as shown in the figure.
    Fig 1: Stretching Teflon Seal
    G09758520Courtesy of MAZDA MOTORS CORP.
  2. Remove the teflon seal as shown in the figure.

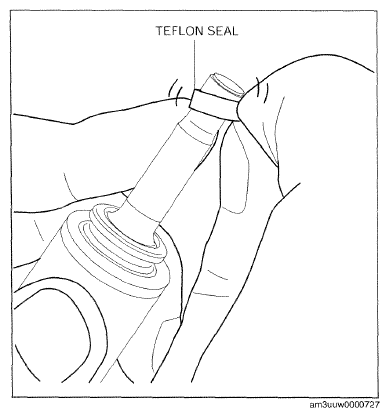

    Fig 2: Removing Teflon Seal
    G09758521Courtesy of MAZDA MOTORS CORP.
