Using M-MDS

  1. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Connect the M-MDS to the DLC-2.
  3. Using the simulation function "FP", start the fuel pump. (See ON-BOARD DIAGNOSTIC TEST [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)

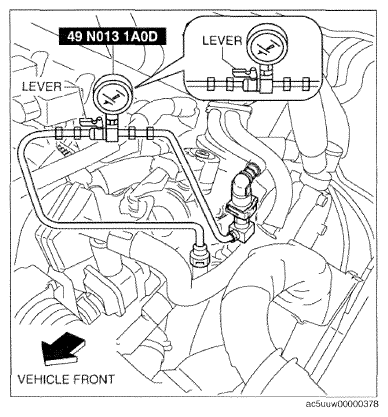

    Fig 1: Installing SST Quick Release Connector Into Fuel Pipe
    G09782651Courtesy of MAZDA MOTORS CORP.
