Engine Compartment Side

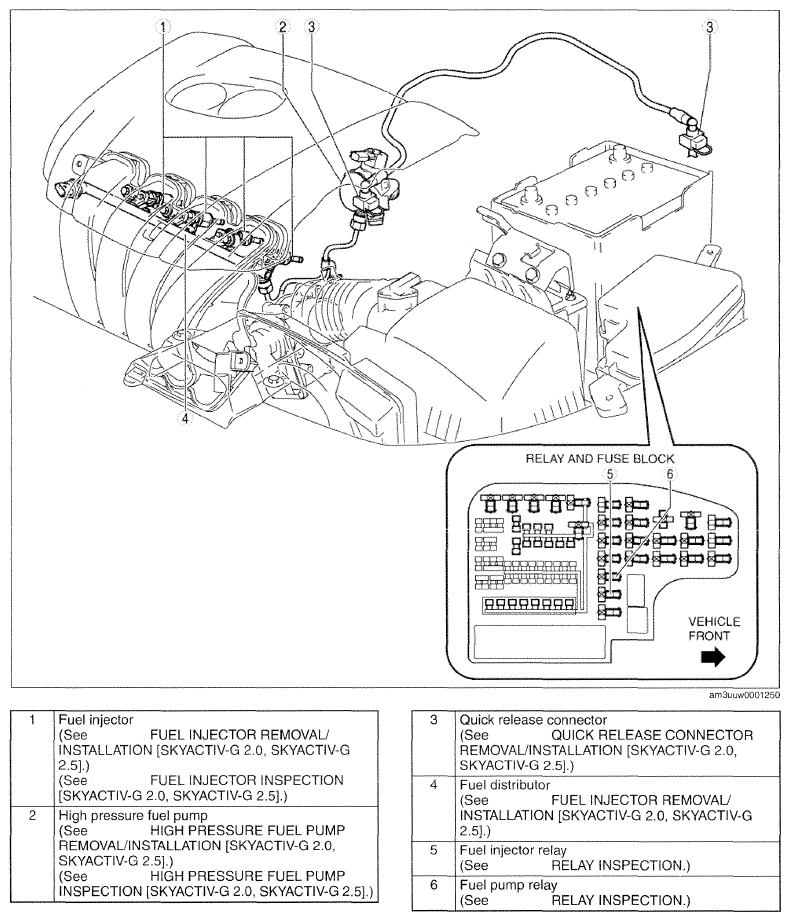

Fig 1: Fuel System Components Location (Engine Compartment Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
