Control System Device And Control Relationship Chart

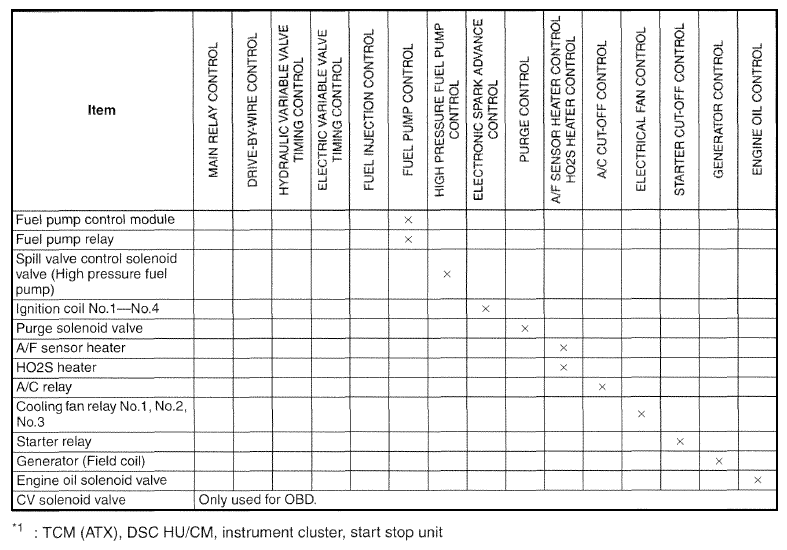

Fig 1: Control System Device And Control Relationship Chart (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

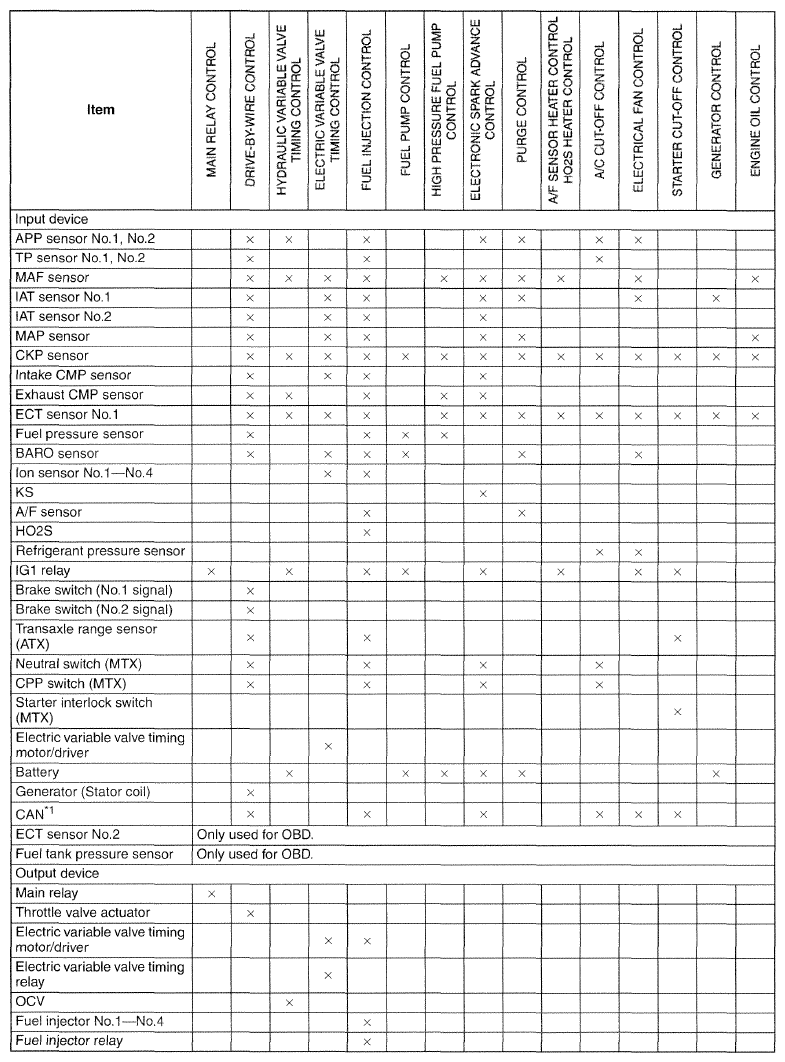

Fig 2: Control System Device And Control Relationship Chart (SKYACTIV-G 2.0, SKYACTIV-G 2.5) (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
