Engine Compartment
WARNING:
This page is about a different car, the 2014 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

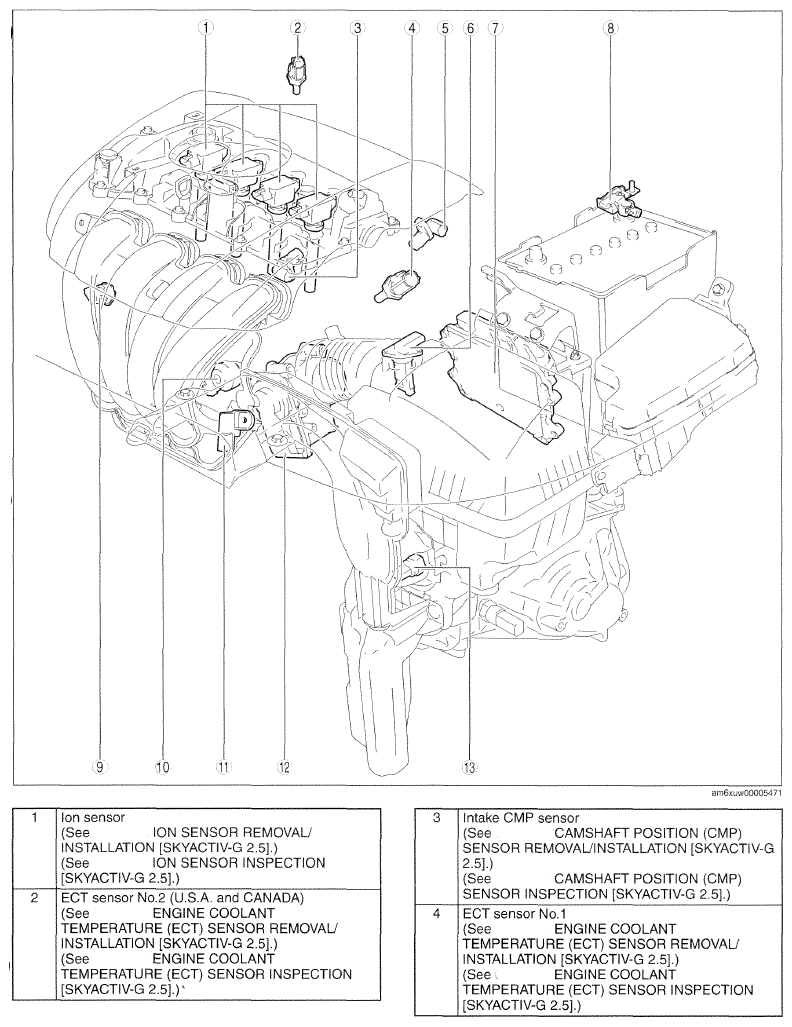

Fig 1: Control System Components Location - Engine Compartment (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

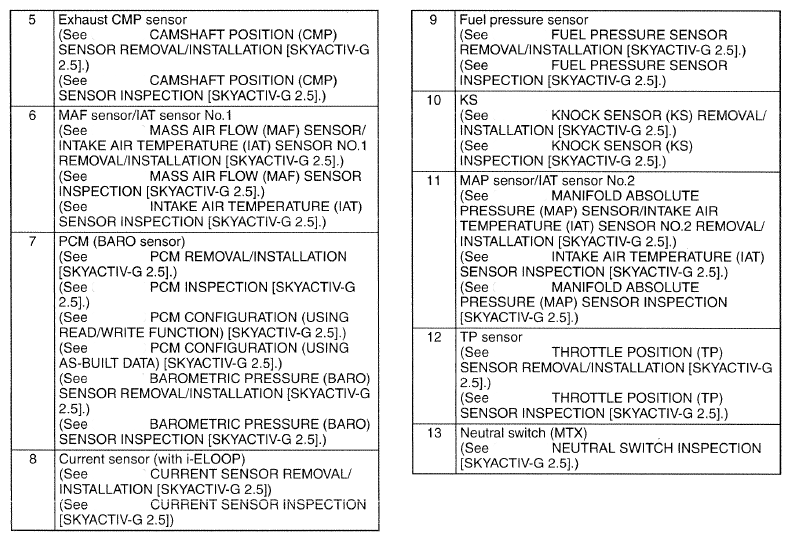

Fig 2: Control System Components Location - Engine Compartment (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
