Front Buckle Removal/Installation: Driver-side

  1. Disconnect the negative battery cable and wait for 1 min or more  . (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
  2. Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION .)
  3. Disconnect the front buckle connector.

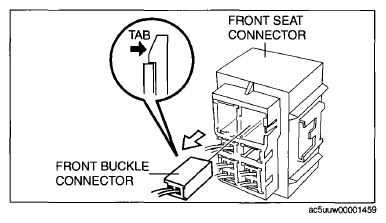

    Fig 1: Disconnecting Front Buckle Connector
    G09076262Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the front buckle.
  6. Install in the reverse order of removal.

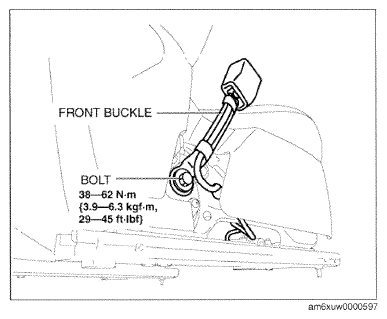

    Fig 2: Front Buckle And Mounting Bolts With Torque Specifications
    G09771732Courtesy of MAZDA MOTORS CORP.
