Rear Buckle Removal/Installation: Notes

  1. Remove the rear seat cushion. (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
  2. Remove the bolts.

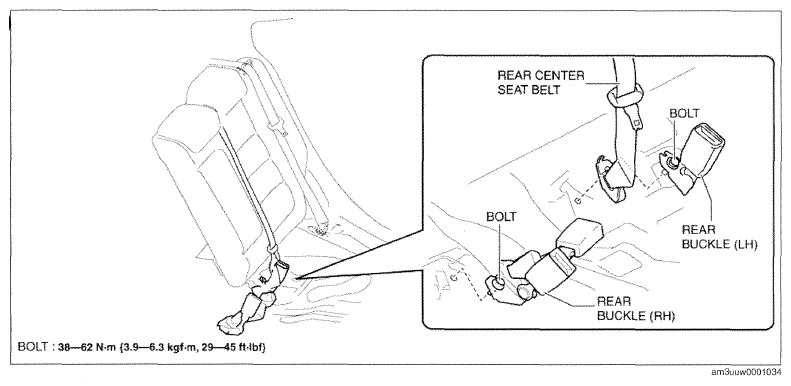

    Fig 1: Rear Buckle Replacement Components With Torque Specifications
    G09771736Courtesy of MAZDA MOTORS CORP.
  3. Remove the rear buckle (RH) and rear buckle (LH).
  4. Install in the reverse order of removal. (See REAR BUCKLE INSTALLATION NOTE .)
