Rear Buckle Installation Note

  1. After installing the rear buckle, place it as shown in the figure.

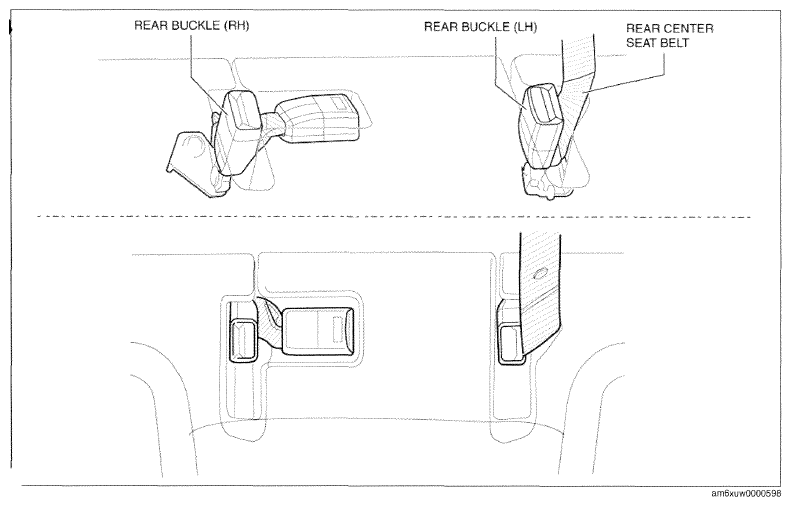

    Fig 1: Identifying Rear Buckle Components
    G09771737Courtesy of MAZDA MOTORS CORP.
