No. 14 Poor Fuel Economy: Notes

NO. 14 POOR FUEL ECONOMY DESCRIPTION AND POSSIBLE CAUSES (SKYACTIV-G 2.0, SKYACTIV-G 2.5)

14  POOR FUEL ECONOMY
DESCRIPTION
  • Fuel economy is unsatisfactory.
POSSIBLE CAUSE
  • Engine cooling system malfunction
  • PCM DTC is stored
  • Erratic signal to PCM
    • APP sensor or related circuit malfunction
    • ECT sensor No. 1 or related circuit malfunction
    • IAT sensor No. 1 (integrated in MAF sensor/IAT sensor No. 1) or related circuit malfunction
    • MAF sensor or related circuit malfunction
    • MAP sensor or related circuit malfunction
    • TP sensor or related circuit malfunction
    • Intermittent open or short circuit MAF sensor, APP sensor, TP sensor
  • Improper operation of cooling fan control system
  • Improper operation of A/C system
  • Incorrect fuel injection timing
  • Fuel injector malfunction
  • Contaminated air cleaner element
  • Air leakage or restriction in intake-air system
  • Poor fuel quality
  • Improper coolant level
  • Clutch slippage (MTX)
  • Improper ATF level (ATX)
  • Brake dragging
  • Tire air pressure malfunction
  • Vacuum leakage
  • Fuel leakage
  • Contamination in MAF sensor
  • Tires, wheels (large size)
  • Change of intake air system components and exhaust system components
  • Engine operation time is longer than traveled distance
    • Vehicle is driven in congested traffic frequently
    • Left idling for long periods
  • Amount of fuel injection increases
    • Overloaded
    • Frequent acceleration/deceleration
    • Frequently driving on ascending roads
    • Travel distance per one drive is short (amount of time for warm-up is long during engine operation)
    • Improper load signal input
      • Improper A/C request signal
  • Discharge is high when the vehicle is not used
    • Driver forgets to switch electronic device off
    • Electronic device is frequently used with engine stopped (no power generation)
    • Remote transmitter is left in vehicle with engine stopped (no power generation) (with advanced keyless entry system)
    • Vehicle left undriven for long periods
    • Large amount of parasitic draw (especially after-market electronic devices)

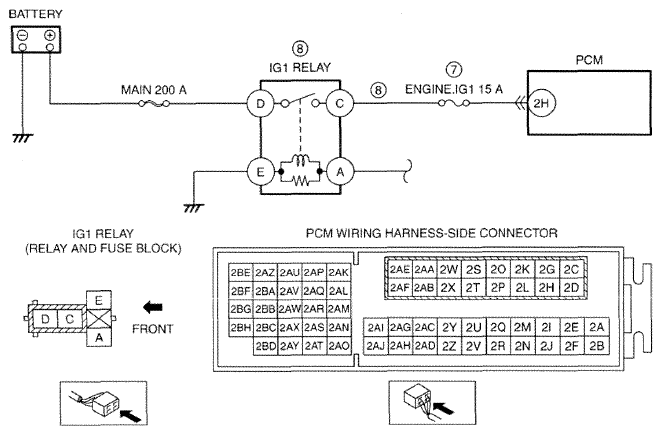

    • Short to power supply in wiring harness between IG1 relay terminal C and PCM terminal 2H
  • Erratic or no signal from CMP sensor
    • Loose installation
    • Damaged trigger wheel (intake camshaft and/or exhaust camshaft)
    • Open or short circuit in related wiring harness
  • Erratic signal from CKP sensor
    • Loose installation
    • Damaged trigger wheel (crankshaft pulley)
    • Open or short circuit in related wiring harness
  • Inadequate fuel pressure (high-pressure side)
    • Fuel pressure sensor malfunction
    • High pressure fuel pump malfunction
    • Spill valve control solenoid valve control circuit malfunction (damage to driver in PCM caused by short circuit to ground system)
    • Spill valve control solenoid valve (built-into high pressure fuel pump) malfunction
    • Relief valve (built-into high pressure fuel pump) malfunction
    • Fuel line restricted
    • Fuel pump unit malfunction
  • Improper engine compression
  • Improper intake valve timing
  • Improper exhaust valve timing
  • Improper operation of electric variable valve timing control system
    • Electric variable valve timing driver malfunction
    • Electric variable valve timing motor malfunction
    • Electric variable valve timing actuator malfunction
  • Improper operation of hydraulic variable valve timing control system
  • Spark plug malfunction
  • Exhaust system and/or TWC restriction
  • PCV valve malfunction
  • Injector driver (built-into PCM) malfunction
    WARNING: The following troubleshooting flow chart contains the fuel system diagnosis and repair procedures. Read the following warnings before performing the fuel system services:
    • Fuel vapor is hazardous. It can easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.
    • Fuel line spills and leakage are dangerous. Fuel can ignite and cause serious injury or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete "BEFORE SERVICE PRECAUTION" and "AFTER SERVICE PRECAUTION" described in this manual. (See BEFORE SERVICE PRECAUTION .) (See AFTER SERVICE PRECAUTION .)
    CAUTION:
    • Disconnecting/connecting the quick release connector without cleaning it may possibly cause damage to the fuel pipe and quick release connector. Always clean the quick release connector joint area before disconnecting/connecting, and make sure that it is free of foreign matter.
G09794782Courtesy of MAZDA MOTORS CORP.
CAUTION:
  • Verify the malfunction symptom according to not only the PID value but also the symptom troubleshooting.
RELATED PIDS

Item (definition) Unit/Condition Definition Condition/Specification (Reference)
AC_REQ Off/On A/C switch status received by PCM via CAN
  • A/C switch off: Off
  • A/C switch on: On
APP1 % Accelerator pedal opening angle (absolute value) input from APP sensor No. 1
  • Accelerator pedal released: Approx.15%
  • Accelerator pedal fully depressed: Approx. 82%
V APP sensor No. 1 voltage
  • Accelerator pedal released: Approx. 0.75 V
  • Accelerator pedal fully depressed: Approx. 4.1 V
APP2 % Accelerator pedal opening angle (absolute value) input from APP sensor No. 2
  • Accelerator pedal released: Approx. 7.45%
  • Accelerator pedal fully depressed: Approx. 41%
V APP sensor No. 2 voltage
  • Accelerator pedal released: Approx. 0.38 V
  • Accelerator pedal fully depressed: Approx. 2.05 V
ECT °C, °F Engine coolant temperature
  • Displays ECT
V ECT sensor No. 1 voltage
  • ECT is 20 °C {68 °F}: Approx. 3.10 V
  • ECT is 40 °C {104 °F}: Approx. 2.16 V
  • ECT is 60 °C {140 °F}: Approx. 1.40 V
  • ECT is 80 °C {176 °F}: Approx. 0.87 V
  • ECT is 100 °C {212 °F}: Approx. 0.54 V
FUEL_PRES KPa {MPa}, mBar {Bar}, psi, in H20 Fuel pressure
  • Displays fuel pressure
V Fuel pressure sensor voltage
  • Fuel pressure is 3.0 MPa {31 kgf/cm2 , 435 psi}: Approx. 0.92 V
  • Fuel pressure is 4.8 MPa {49 kgf/cm2 , 696 psi}: Approx. 1.17 V
IAT °C, °F Intake air temperature (No. 1)
  • Displays IAT (No. 1)
V IAT sensor No. 1 voltage
  • IAT is 20 °C {68 °F}: Approx. 2.70 V
  • IAT is 40 °C {104 °F}: Approx. 1.80 V
  • IAT is 60 °C {140 °F}: Approx. 1.20 V
LOAD % Ratio of actual amount of intake air to the maximum air charging amount (mass volume) of cylinder
  • Idle (after warm up): Approx. 17.64%
  • Racing (engine speed is 2, 000 rpm): Approx. 14.51%
  • Racing (engine speed is 4, 000 rpm): Approx. 21.17%
MAF g/Sec Mass air flow
  • Displays MAF
V MAF sensor voltage
  • Ignition switched ON (engine off) (MAF: 0.59 g/s {0.078 lb/min}): Approx.0.72 V
  • Idle (after warm up) (MAF: 2.17 g/s {0.287 lb/min}): Approx. 0.86 V
  • Racing (engine speed is 2, 000 rpm) (MAF: 4.73 g/s {0.626 lb/min}): Approx. 1.07 V
MAP KPa {MPa}, mBar {Bar}, psi, in H20 Manifold absolute pressure
  • Displays MAP
V MAP sensor voltage
  • Ignition switched ON (engine off) (MAP: 101 kPa {1.03 kgf/cm2 , 14.6 psi}): Approx. 4.07 V
  • Idle (after warm up) (MAP: 33 kPa {0.34 kgf/cm2 , 4.8 psi}): Approx. 1.34 V
  • Racing (engine speed is 2, 000 rpm) (MAP: 26 kPa {0.27 kgf/cm2 , 3.8 psi}): Approx. 1.05 V
TP_REL % Throttle valve opening angle (relative value) with value at throttle valve fully open timing as the start point
  • Accelerator pedal released: Approx. 12%
  • Accelerator pedal fully depressed: Approx. 82%
