Clearance Inspection

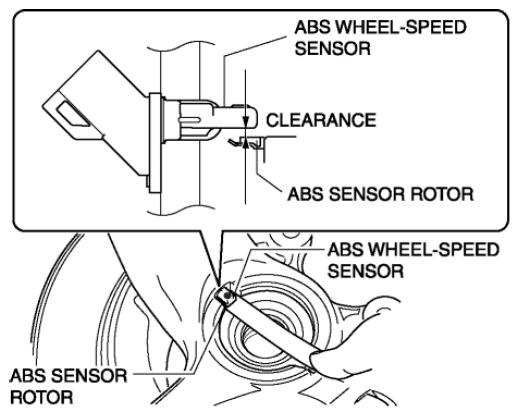

- Measure the gap between the ABS sensor rotor and ABS wheel-speed sensor using a feeler gauge.
Courtesy of MAZDA MOTORS CORP.
- If not within the specification, verify the following items and repair or replace if necessary.
- Is there deformation or damage to the ABS sensor rotor?
- Is there deformation or damage to the ABS wheel speed sensor?
- Is there foreign material adhering?
Clearance
- 2.1 mm {0.083 in} or less
- If not within the specification, verify the following items and repair or replace if necessary.
