Passenger Side

Disconnect the negative battery cable.
Remove the following parts:
1. Passenger-side inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
2. Passenger-side front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
3. Passenger-side front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
4. Passenger-side power window motor (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

Apply battery positive voltage and connect the ground to the passenger-side power window motor terminals, and then inspect the passenger-side power window motor operation.

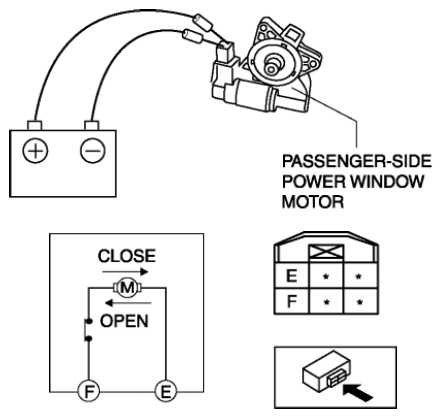

Fig 1: Inspecting Passenger-Side Power Window Motor Operation

Courtesy of MAZDA MOTORS CORP.

If not as indicated in the table, replace the passenger-side power window motor. (See POWER WINDOW MOTOR REMOVAL/INSTALLATION .)

Operation	Terminal
Operation	E	F
Open	B+	Ground
Close	Ground	B+
