Battery Box Installation Note

  1. Assemble with battery box hooks E aligned with the battery tray holes at two points.

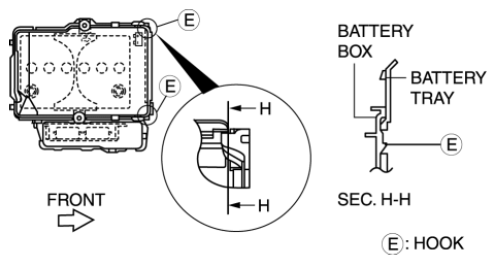

    Fig 1: Battery Box Hooks E With Battery Tray Holes
    G08150256Courtesy of MAZDA MOTORS CORP.
