Battery Cover Removal Note

CAUTION:
  • To prevent component damage, stand at the front of the vehicle and remove the battery cover one side at a time.
  • When pulling the clips, do not apply excessive force to a clip using the screwdriver or pair of pliers.
  • If excessive force is applied to the clips, they could be damaged. When removing the battery cover, use the following procedure to prevent damaging the clips.

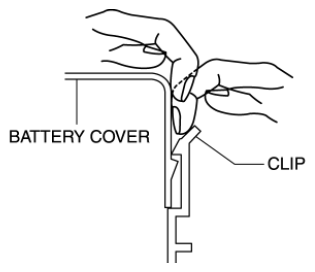

Fig 1: Battery Cover
G08150251Courtesy of MAZDA MOTORS CORP.
  1. Remove the battery cover using the following procedure.

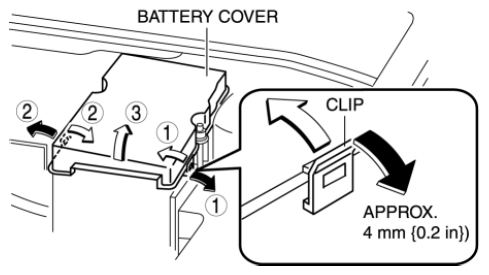

    Fig 2: Battery Cover And Clip
    G08150252Courtesy of MAZDA MOTORS CORP.
    1. Pull the clip (LH) in the outward direction (approx. 4 mm {0.2 in}  ) and disengage the battery cover tabs.
    2. Pull the clip (RH) in the outward direction (approx. 4 mm {0.2 in}  ) and disengage the battery cover tabs.
    3. Remove the battery cover.
