PCM Cover No. 1 Installation Note

Install with PCM cover No. 1 hooks B aligned with the PCM cover No. 2 holes at two points.

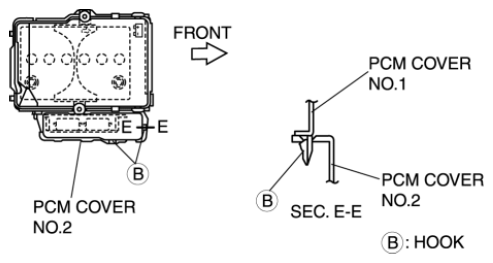

Fig 1: Identifying PCM Cover No. 1 Hooks B With PCM Cover No. 2 Holes
Courtesy of MAZDA MOTORS CORP.
Install the PCM cover No. 1 to the PCM cover No. 2 hook.

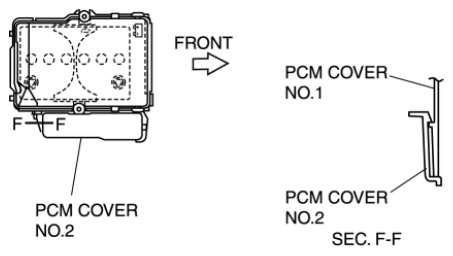

Fig 2: Identifying PCM Cover No. 1 And PCM Cover No. 2 Hook
Courtesy of MAZDA MOTORS CORP.
