Generator and Generator Heat Insulator Removal Note

Set the cooler pipe out of the way. (See REFRIGERANT LINE REMOVAL/INSTALLATION .)

Fig 1: Setting Cooler Pipe Out Of Way
Courtesy of MAZDA MOTORS CORP.
Remove the generator and generator heat insulator together from the engine, and position them in the engine compartment in a location where no part can be damaged.
Remove the generator heat insulator from the generator.
Remove the generator from above the engine compartment.

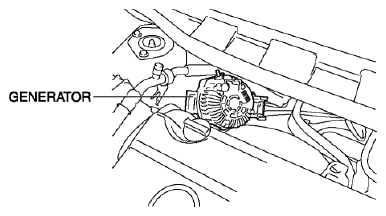

Fig 2: Identifying Generator
Courtesy of MAZDA MOTORS CORP.
