Starter Installation Note

NOTE:

If the insulator is peeling or damaged, attach a new insulator using the following procedure:

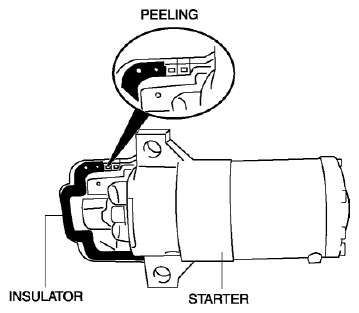

Fig 1: Installing Starter

Courtesy of MAZDA MOTORS CORP.

Peel off the insulator from the starter completely using a scraper.
Degrease the insulator attachment area.

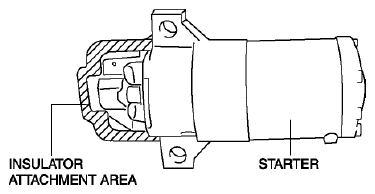

Fig 2: Identifying Starter And Insulator Attachment Area
Courtesy of MAZDA MOTORS CORP.
Attach a new insulator to the starter.

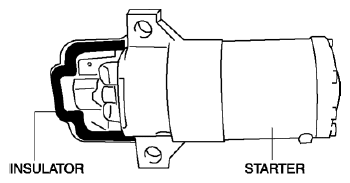

Fig 3: Attaching Insulator To Starter
Courtesy of MAZDA MOTORS CORP.
