Clutch Pedal Position (CPP) Switch Inspection

Verify that the CPP switch is installed properly.
Remove the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
Disconnect the CPP switch connector.
Inspect for continuity between CPP switch terminals A and B.

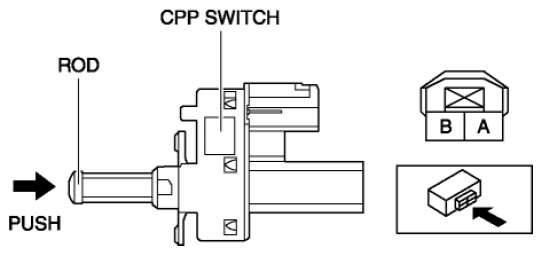

Fig 1: Inspecting Continuity Between CPP Switch Terminals A And B
Courtesy of MAZDA MOTORS CORP.
- If not as specified, replace the CPP switch. (See CLUTCH PEDAL POSITION SWITCH REMOVAL/INSTALLATION .)

CLUTCH PEDAL POSITION SPECIFICATION

Measured Condition	Clutch Pedal Position	Continuity
Rod pushed	Clutch pedal released	Continuity detected
Except above	Clutch pedal depressed	No continuity
