A/F sensor heater control

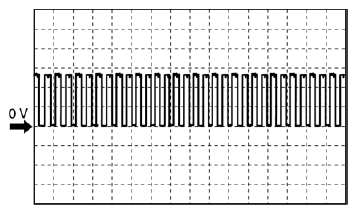

Fig 1: A/F Sensor Heater Control Voltage Signal Waveform

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2A(+) - body ground(-)

  Oscilloscope setting

• 5 V/DIV (Y), 200 ms/DIV (X), DC range

  Vehicle condition

• Idle (after warm up)
