CKP signal

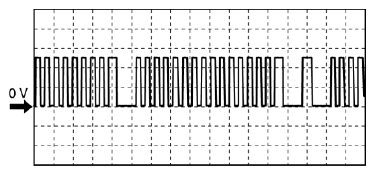

Fig 1: CKP Voltage Signal Waveform

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 2W(+) - body ground(-)

  Oscilloscope setting

• 5 V/DIV (Y), 5 ms/DIV (X), DC range

  Vehicle condition

• idle (after warm up)
