Generator field coil control

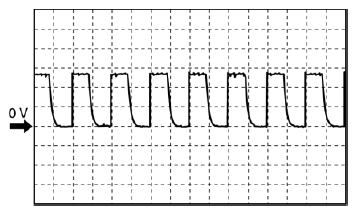

Fig 1: Generator Field Coil Control Voltage Signal Waveform
Courtesy of MAZDA MOTORS CORP.
PCM terminals
2AA(+) - body ground(-)
Oscilloscope setting
0.5 V/DIV (Y), 2 ms/DIV (X), DC range
Vehicle condition
idle (after warm up)
