5 Touring
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Fuel System Location Index
>>
Engine Compartment Side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Engine Compartment Side

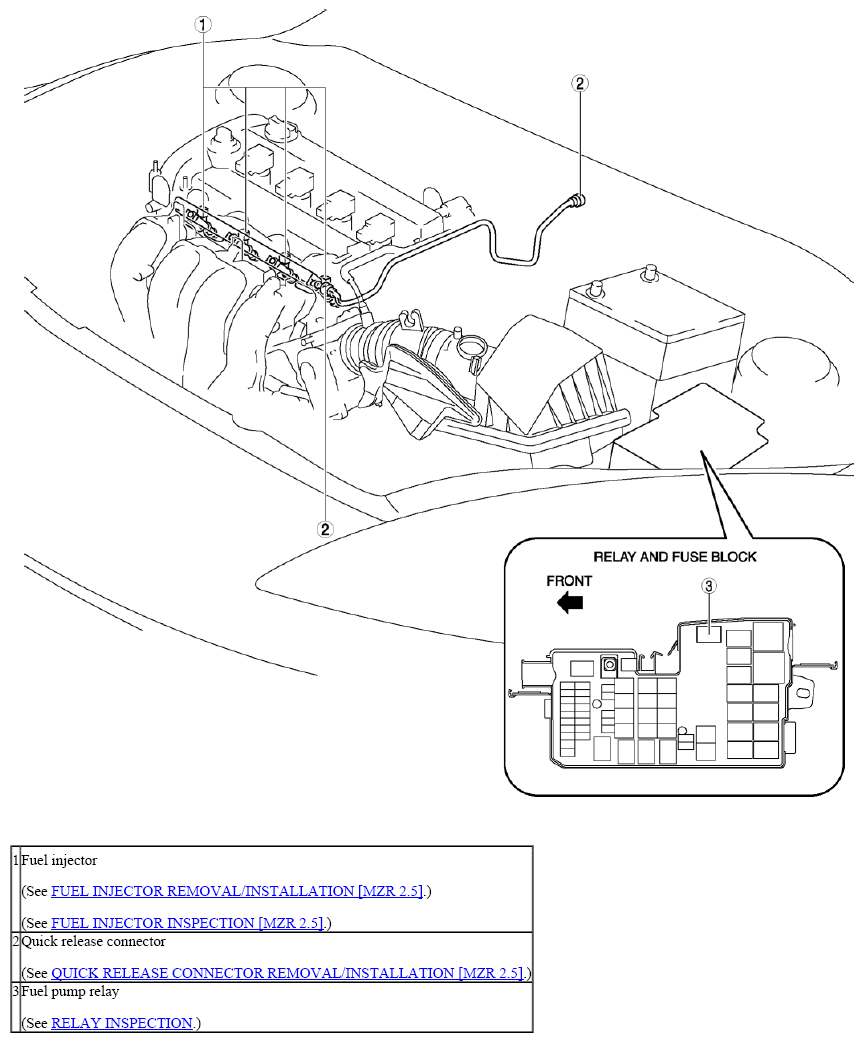

Fig 1: Identifying Fuel System Component Locations (Engine Compartment Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
