Fuel Tank Side

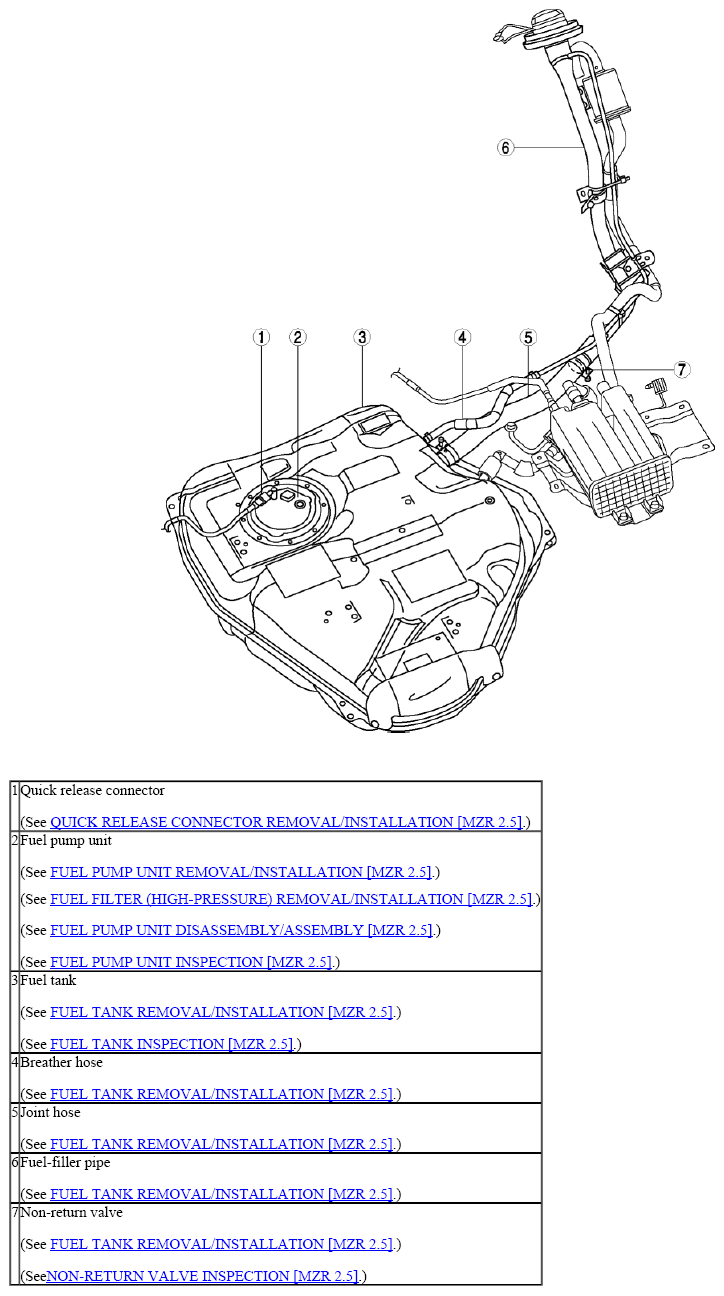

Fig 1: Identifying Fuel System Component Locations (Fuel Tank Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
