Quick Diagnostic Table

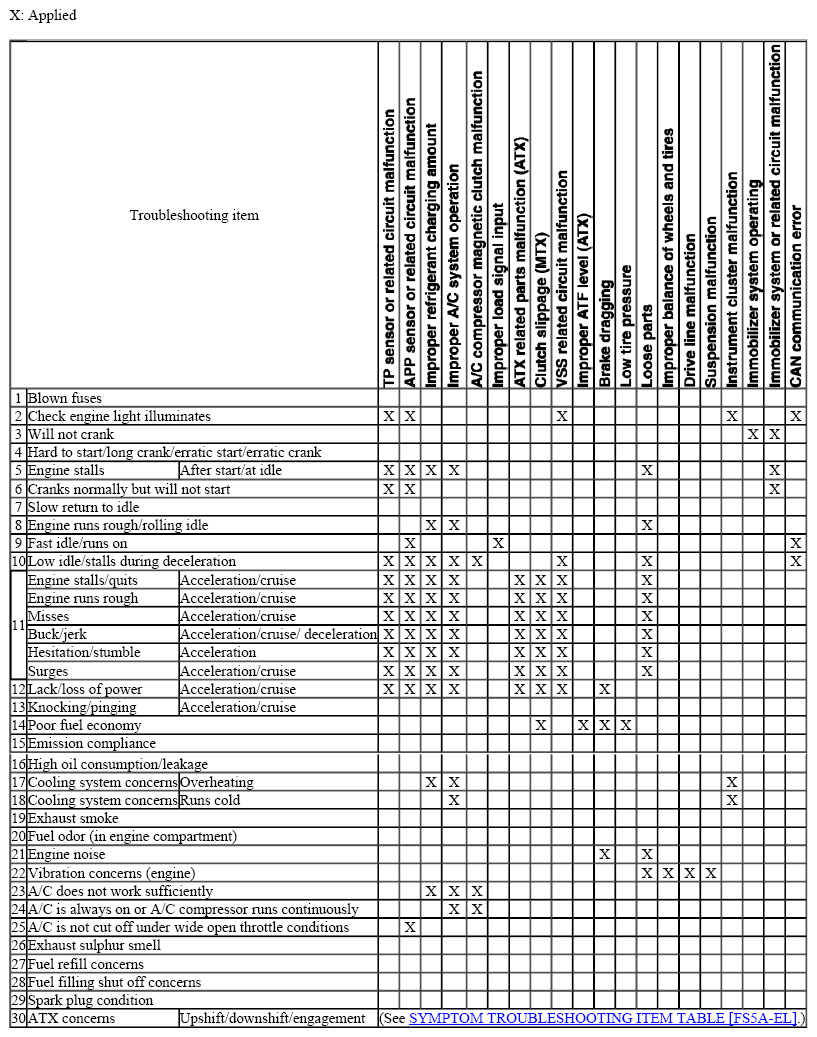

Fig 1: Quick Diagnostic Table - MZR 2.5 (1 Of 5)
Courtesy of MAZDA MOTORS CORP.

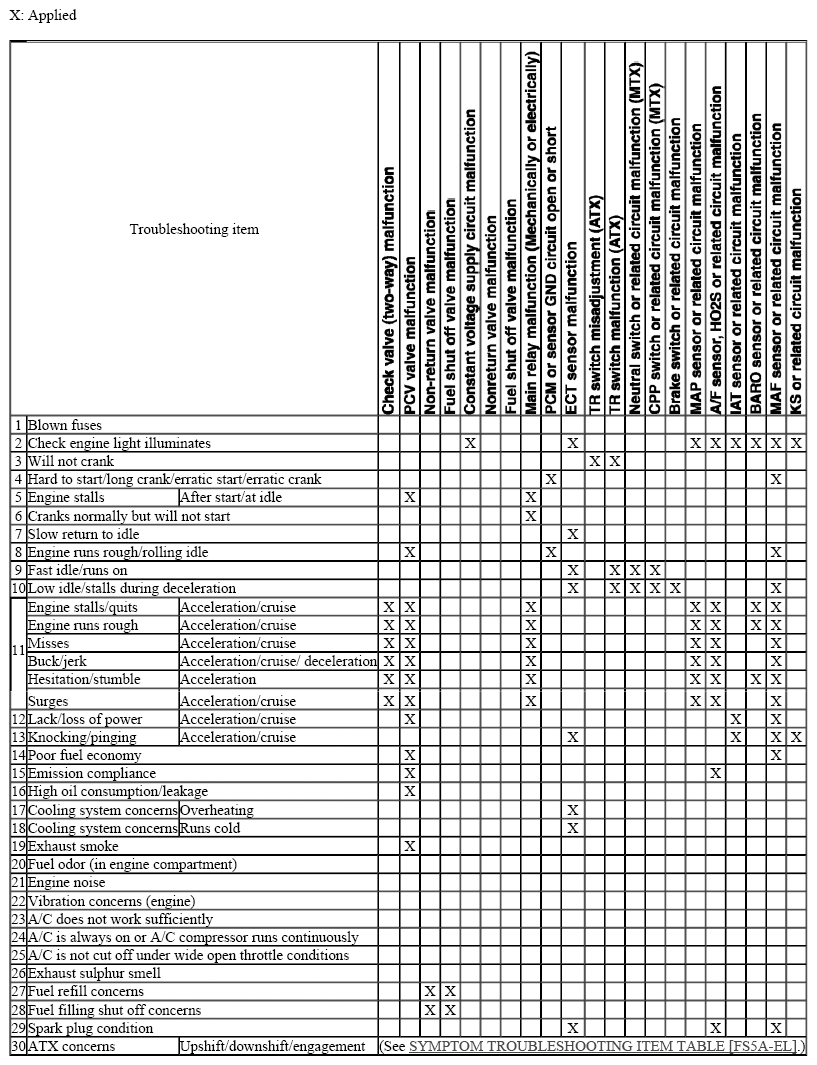

Fig 2: Quick Diagnostic Table - MZR 2.5 (2 Of 5)
Courtesy of MAZDA MOTORS CORP.

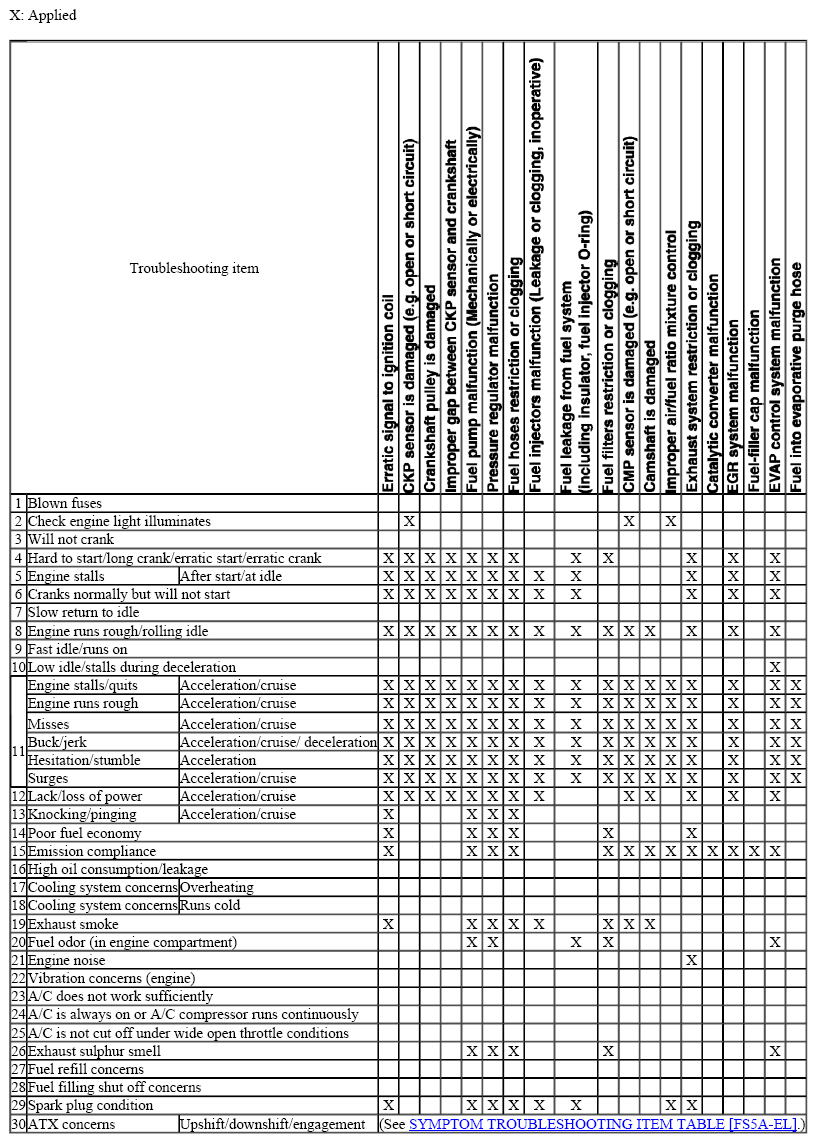

Fig 3: Quick Diagnostic Table - MZR 2.5 (3 Of 5)
Courtesy of MAZDA MOTORS CORP.

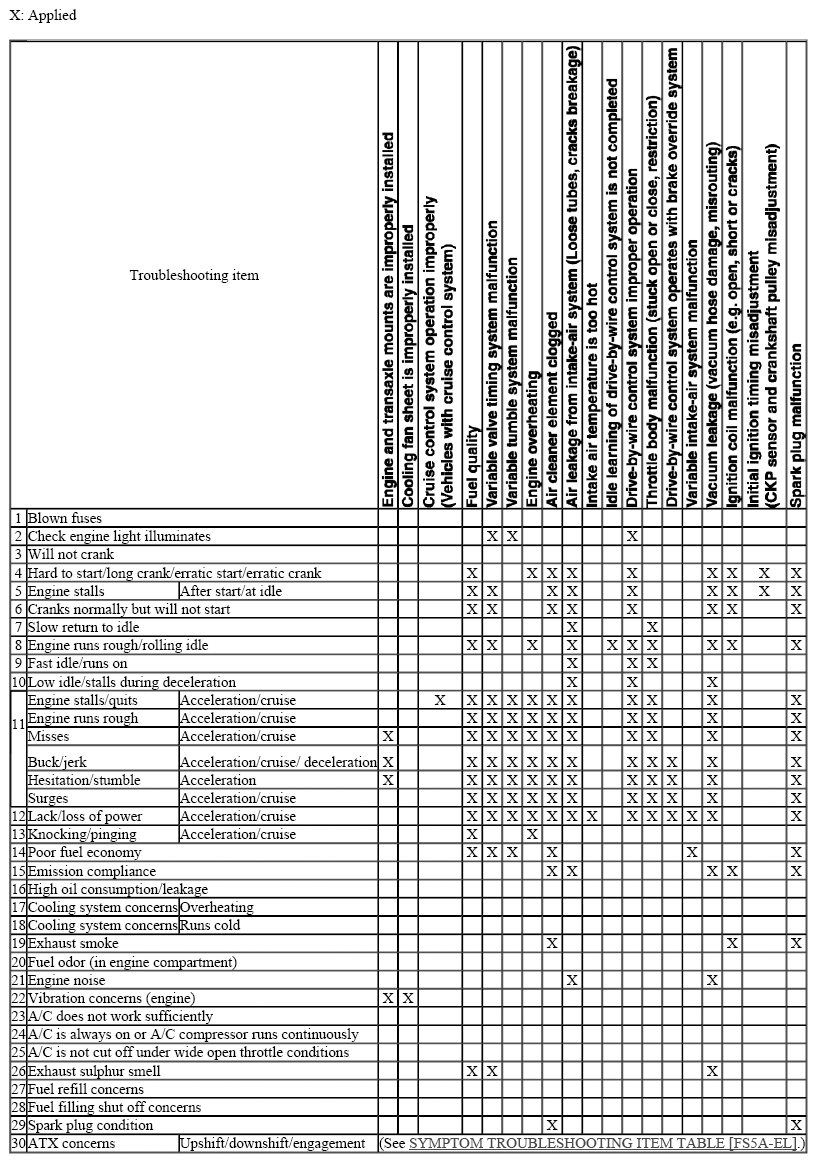

Fig 4: Quick Diagnostic Table - MZR 2.5 (4 Of 5)
Courtesy of MAZDA MOTORS CORP.

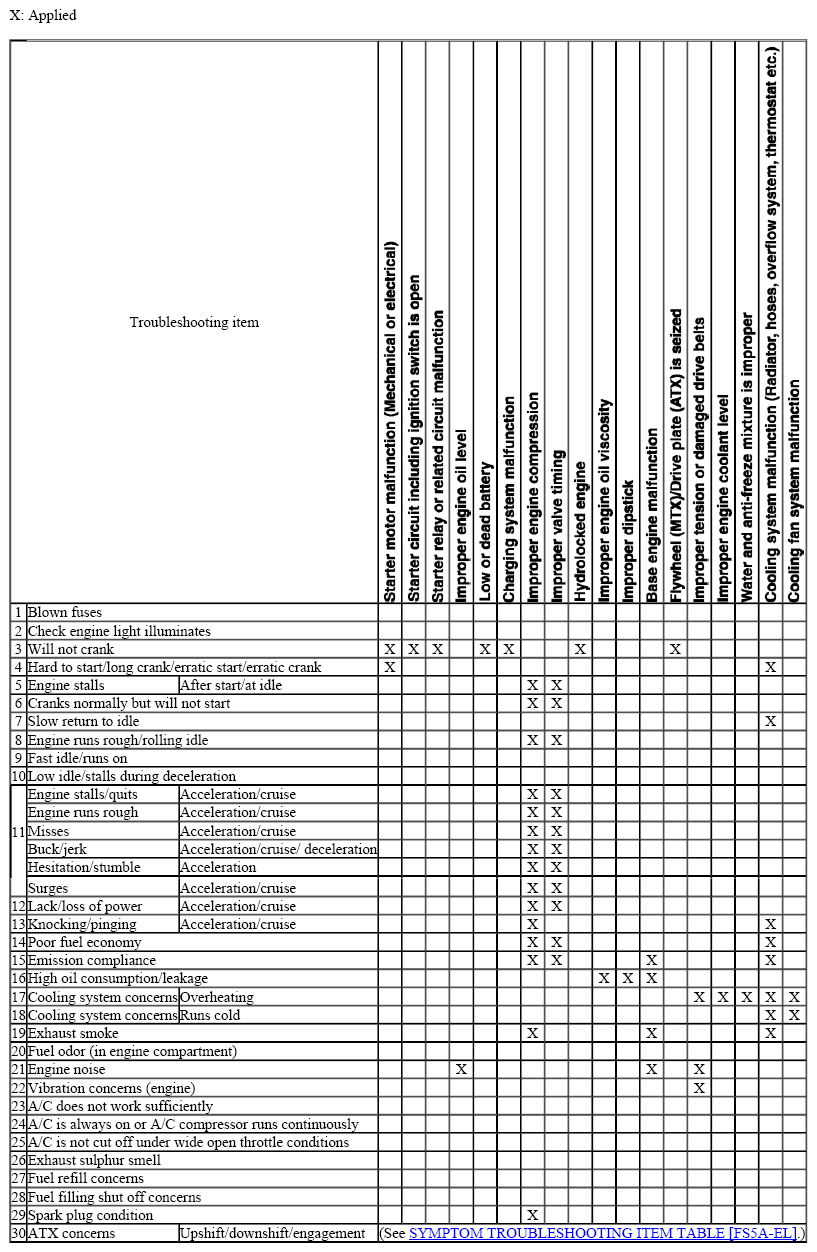

Fig 5: Quick Diagnostic Table - MZR 2.5 (5 Of 5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
