Torque Converter Installation Nut Installation Note

Fix the crankshaft pulley to lock the torque converter against rotation.

Fig 1: Fixing Crankshaft Pulley
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- After temporarily tightening the torque converter installation nut uniformly, tighten it to the specified torque.
Tighten the torque converter installation nut.

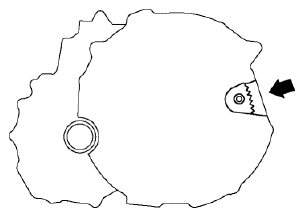

Fig 2: Locating Torque Converter Installation Nut
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 41-54 N.m {4.2-5.5 kgf.m, 31-39 ft.lbf}
