Torque Converter Installation Nut Removal Note

  1. Fix the crankshaft pulley to lock the torque converter against rotation.
    Fig 1: Fixing Crankshaft Pulley
    G08152142Courtesy of MAZDA MOTORS CORP.
  2. Remove the torque converter installation nut from the starter installation hole.

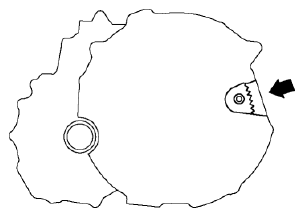

    Fig 2: Locating Starter Installation Hole
    G08152143Courtesy of MAZDA MOTORS CORP.
