Transaxle Removal Note

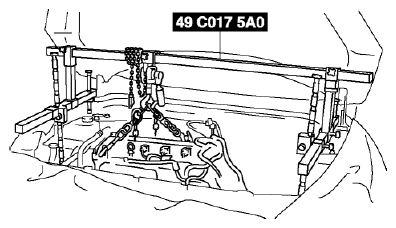

  1. Adjust the SST  to tilt the engine to the transaxle side.
    Fig 1: Tilting Engine To Transaxle Side
    G08152144Courtesy of MAZDA MOTORS CORP.
  2. Support the transaxle using a transmission jack.
    Fig 2: Supporting Transaxle Using Transmission Jack
    G08152145Courtesy of MAZDA MOTORS CORP.
  3. Remove the transaxle installation bolts.
  4. Remove the transaxle.
