Secondary Control Valve Body On-Vehicle Installation

Install the new O-rings and tubular pin.

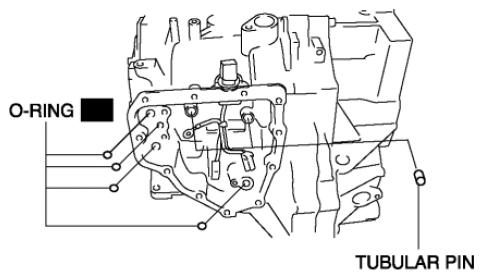

Fig 1: Identifying Tubular Pin And O-Rings
Courtesy of MAZDA MOTORS CORP.
Install the secondary control valve body.

Tighten the bolts and GND shown below.

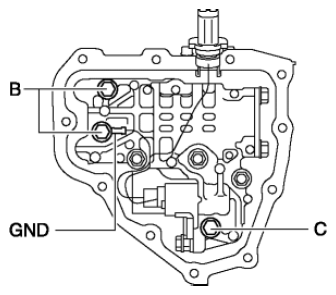

Fig 2: Identifying Secondary Control Valve Body Bolts And GND

Courtesy of MAZDA MOTORS CORP.

Tightening torque

BOLT LENGTH

Mark	Length (mm {in})
B	40 {1.6}
C	50 {2.0}

Connect the solenoid valve connector.

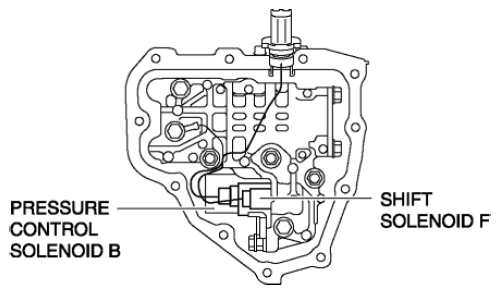

Fig 3: Identifying Pressure Control Solenoid B And Shift Solenoid F

Courtesy of MAZDA MOTORS CORP.

HARNESS SIDE CONNECTOR COLOR (REFERENCE)

Solenoid valve	Connector color
Pressure control solenoid B	White
Shift solenoid F	Black

Apply sealant (TB1217E) to the contact surface of the oil cover.

Fig 4: Identifying Sealant (TB1217E) Application Area Into Contact Surface Of Oil Cover
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Clear oil sealant remaining on the contact surface of the transaxle case and oil cover, and clean the sealant area using detergent oil. Otherwise, oil could leak.
Install the oil cover before the applied sealant starts to harden.
Tightening torque
- 8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
Add ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .)
Install the aerodynamic under cover. (See AERODYNAMIC UNDER COVER REMOVAL/INSTALLATION .)
Install the battery tray. (See BATTERY REMOVAL/INSTALLATION .)
Install the battery. (See BATTERY REMOVAL/INSTALLATION .)
Connect the negative battery cable.
Install the battery cover. (See BATTERY REMOVAL/INSTALLATION .)
Perform the mechanical system test. (See MECHANICAL SYSTEM TEST .)
Perform the road test. (See ROAD TEST .)
