Drive Plate Installation Bolt Removal Note

  1. Set the SST  to the engine.

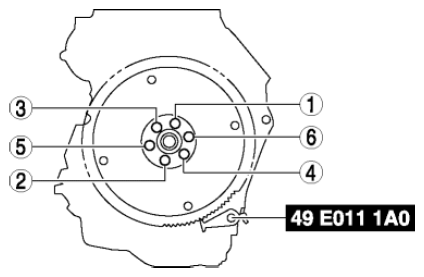

    Fig 1: Identifying Drive Plate Installation Bolts Loosening Sequence
    G08152157Courtesy of MAZDA MOTORS CORP.
  2. Remove the drive plate installation bolts uniformly in the order shown below.
