Part Inspection

  1. Apply air pressure of 400-440 kPa {4.08-4.48 kgf/cm 2  , 58.1-63.8 psi}  to the oil pressure switch as shown below.

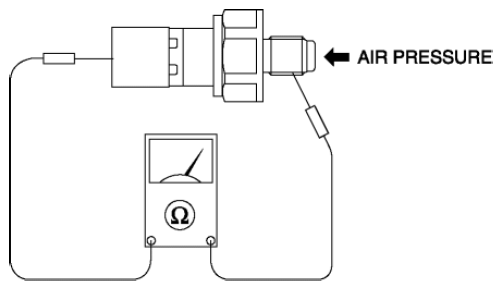

    Fig 1: Checking Oil Pressure Switch Continuity
    G08152085Courtesy of MAZDA MOTORS CORP.
  2. Measure continuity between oil pressure switch terminal A and the thread area.
    Fig 2: Identifying Oil Pressure Switch Connector Terminals
    G08152086Courtesy of MAZDA MOTORS CORP.
    • If there is any malfunction, replace the oil pressure switch.
    OIL PRESSURE SWITCH CONTINUITY

    Measurement Conditions Continuity
    Air pressure applied Yes
    Air pressure not applied No
