TR Switch Installation Note

Verify that the manual shaft is in the N position.

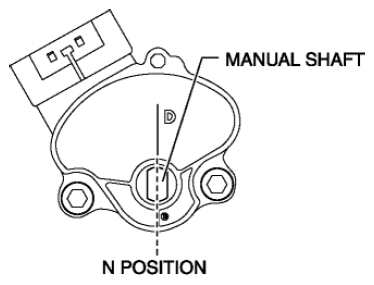

Fig 1: >Aligning Manual Shaft With N Position
Courtesy of MAZDA MOTORS CORP.
Adjust the TR switch so that the resistance between TR switch terminals B and C is 713-787 ohms.

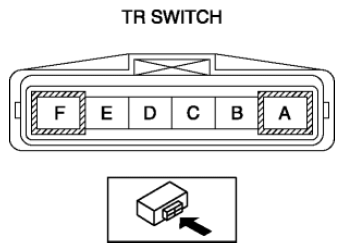

Fig 2: Identifying TR Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Tighten the TR switch installation bolts.
Tightening torque
- 8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
