Outer Mirror Garnish Removal/Installation: Installation

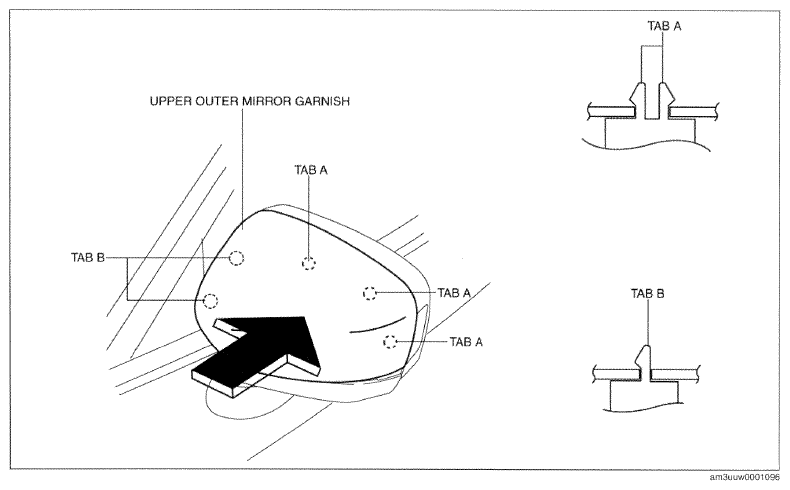

  1. Press the upper outer mirror garnish in the direction of the arrow shown in the figure and install tabs A and B.
    Fig 1: Pressing Upper Outer Mirror Garnish
    G09783912Courtesy of MAZDA MOTORS CORP.
  2. Install the outer mirror glass. (See OUTER MIRROR GLASS REMOVAL .) (See OUTER MIRROR GLASS INSTALLATION .)
  3. Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
