Power Window SUBSWITCH Inspection

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
Verify that the continuity is as indicated in the table using a tester.

Fig 1: Pulling Edge Of Power Window Subswitch Cover
Courtesy of MAZDA MOTORS CORP.

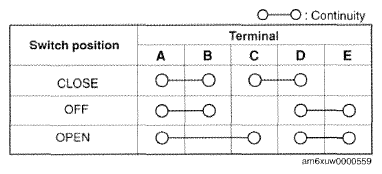

Fig 2: Continuity Reference Chart
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the power window subswitch. (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
