Resistance Inspection
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Disconnect the fuel injector connector.

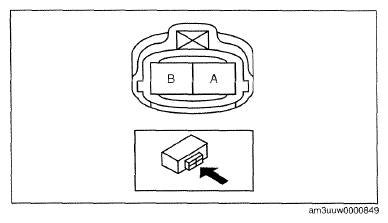

- Inspect the resistance between fuel injector terminals A and B.
Fuel injector resistance
1.74-2.04 ohms [20 °C {68 °F}]
- If not within the specification, replace the fuel injector. (See FUEL INJECTOR REMOVAL/INSTALLATION .)
