Fuel Pump Control Module Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Tip the rear seat back (LH). (See REAR SEAT BACK REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

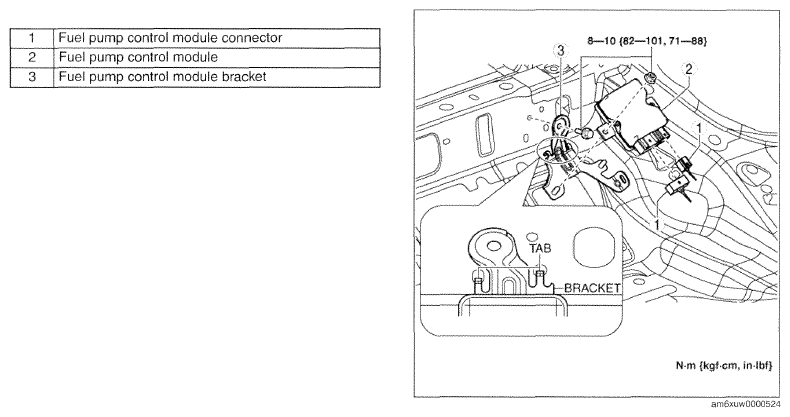

Fig 1: Fuel Pump Control Module With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
