Quick Diagnostic Chart

Fig 1: Quick Diagnostic Chart (SKYACTIV-G 2.0, SKYACTIV-G 2.5; 1 Of 8)
G09794770Courtesy of MAZDA MOTORS CORP.
Fig 2: Quick Diagnostic Chart (SKYACTIV-G 2.0, SKYACTIV-G 2.5; 2 Of 8)
G09794770Courtesy of MAZDA MOTORS CORP.

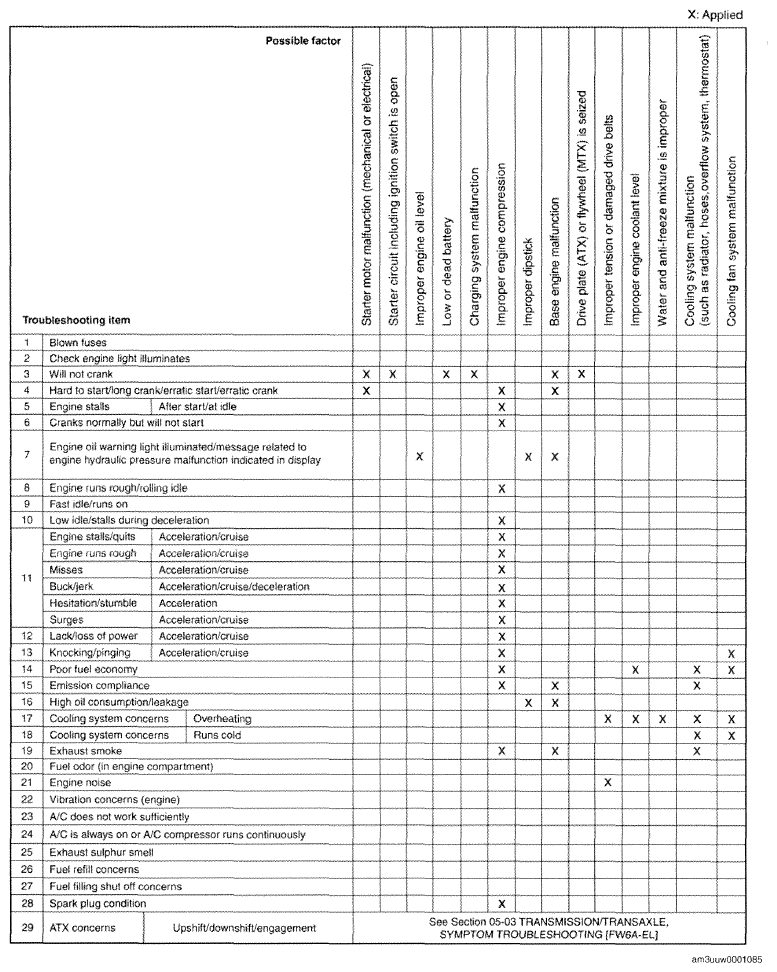

Fig 3: Quick Diagnostic Chart (SKYACTIV-G 2.0, SKYACTIV-G 2.5; 3 Of 8)

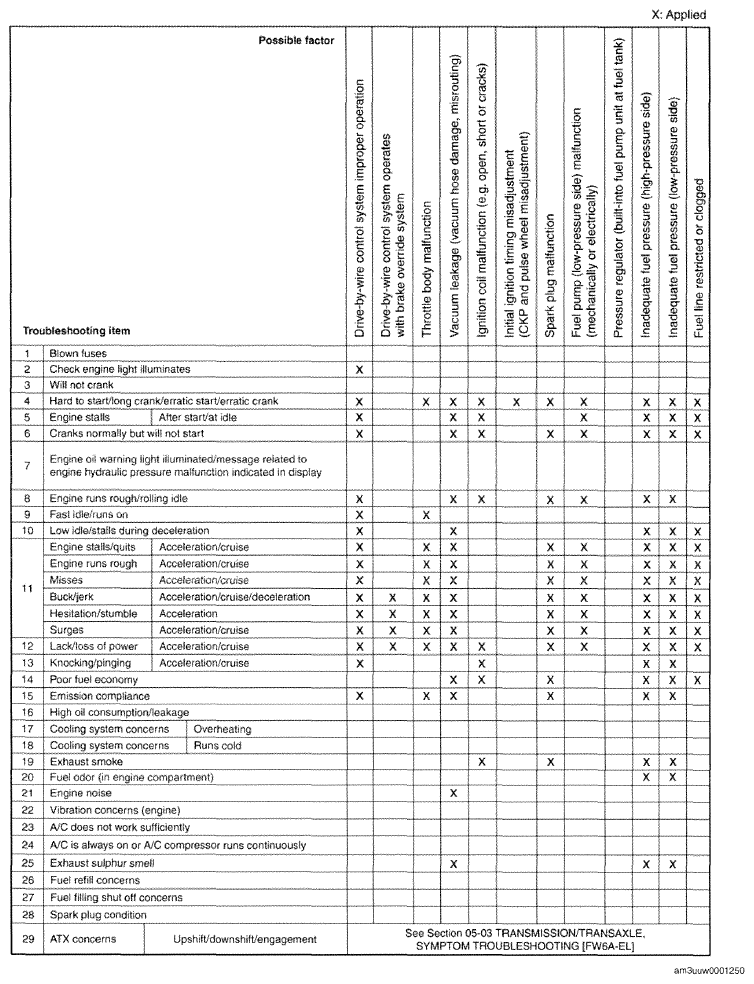

G09794772Courtesy of MAZDA MOTORS CORP.
Fig 4: Quick Diagnostic Chart (SKYACTIV-G 2.0, SKYACTIV-G 2.5; 4 Of 8)
G09794770Courtesy of MAZDA MOTORS CORP.
Fig 5: Quick Diagnostic Chart (SKYACTIV-G 2.0, SKYACTIV-G 2.5; 5 Of 8)
G09794772Courtesy of MAZDA MOTORS CORP.

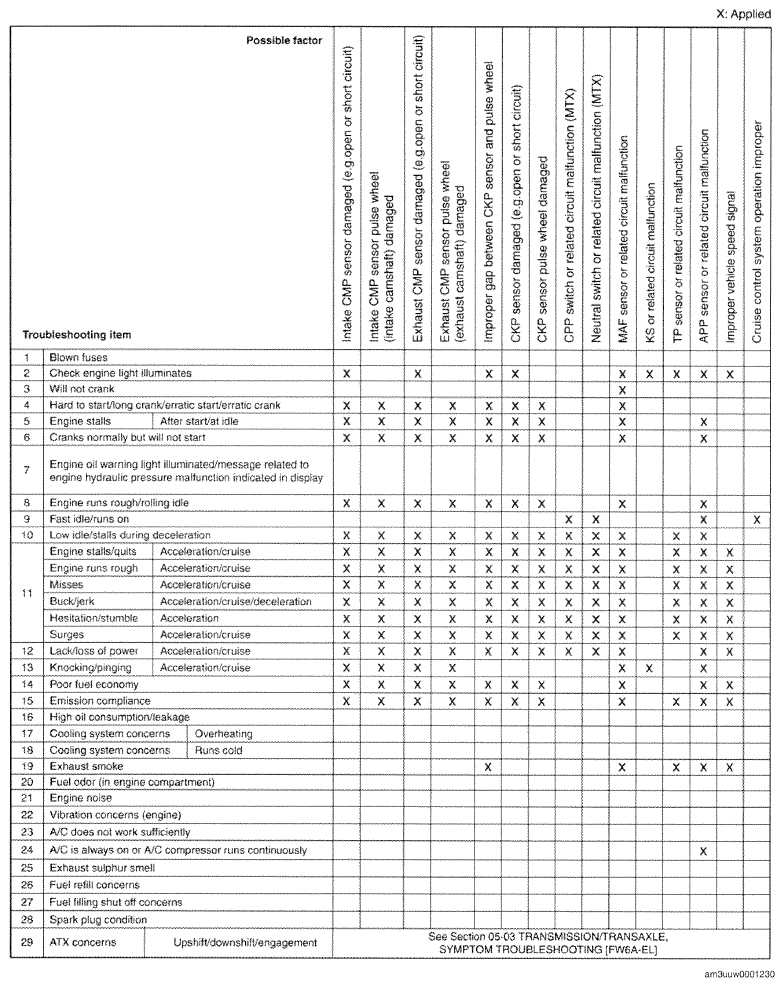

Fig 6: Quick Diagnostic Chart (SKYACTIV-G 2.0, SKYACTIV-G 2.5; 6 Of 8)
G09794775Courtesy of MAZDA MOTORS CORP.
Fig 7: Quick Diagnostic Chart (SKYACTIV-G 2.0, SKYACTIV-G 2.5; 7 Of 8)
G09794772Courtesy of MAZDA MOTORS CORP.

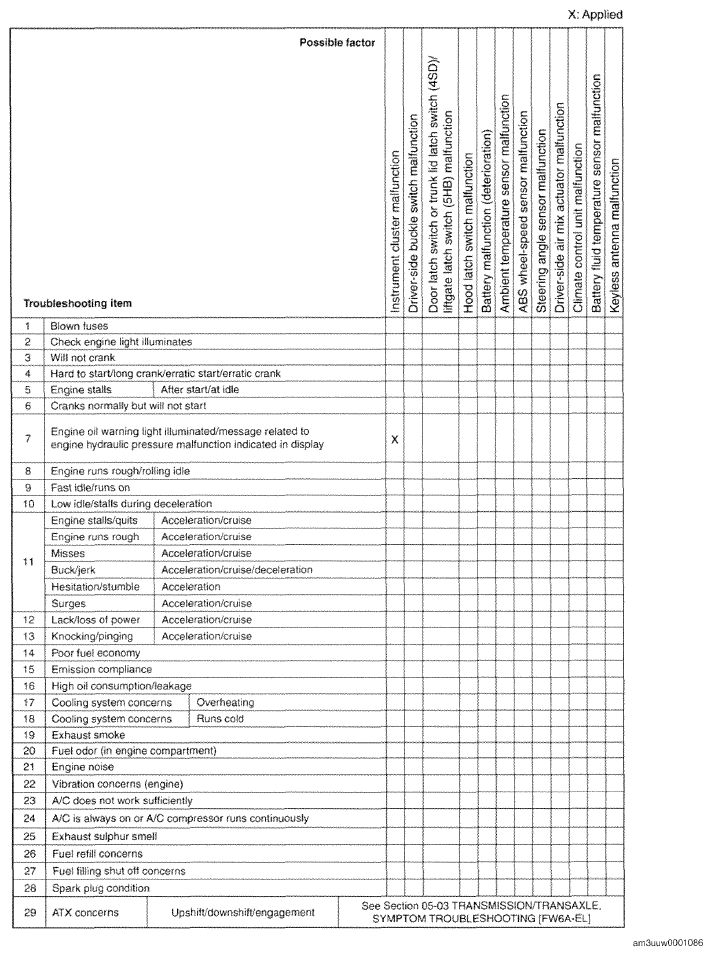

Fig 8: Quick Diagnostic Chart (SKYACTIV-G 2.0, SKYACTIV-G 2.5; 8 Of 8)
G09794777Courtesy of MAZDA MOTORS CORP.
