Electrical System: Terminals: Inspection

Pull lightly on individual wires to verify that they are secured in the terminal.

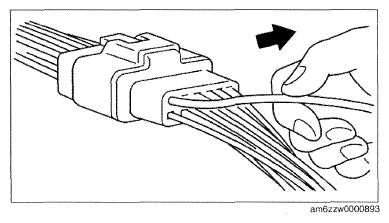

Fig 1: Pulling Connector Terminal Wires
Courtesy of MAZDA MOTORS CORP.
