Repair-Use Connector Replacement Procedure: Soldering

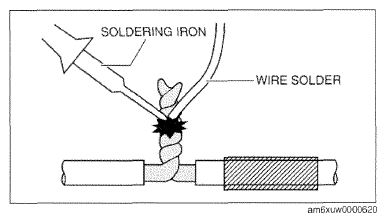

- Twist together firmly the cores of the wiring harnesses being connected and apply soldering in that area.
CAUTION:
- Soldering for a long period of time could affect the surrounding electrical circuit. Apply soldering for an extremely short period of time.
Courtesy of MAZDA MOTORS CORP.

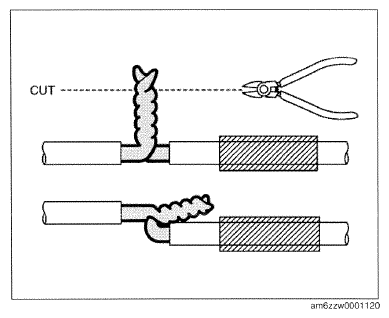

- Cut the ends off the connected area, and apply the soldering iron tip to the wiring harness after removing any fraying.

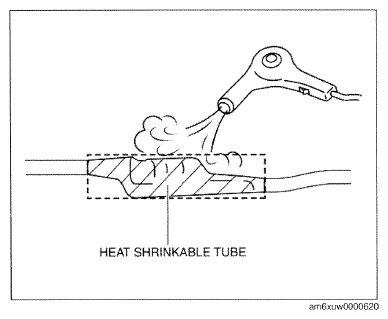

- Set the heat shrinkable tubing to the soldered area and shrink the heat shrinkable tubing at a temperature of approx. 100 °C {212 °F}
using a drier.
CAUTION:
- Completely shrink the heat shrinkable tubing to the wiring harness leaving no gaps.
- Perform the work being careful not to melt the insulation of the wiring harness by excessive heat.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
