Taping Work
- Tape the surface of the heat shrinkable tubing.
CAUTION:
- Remove moisture, oil, and dust from the area to be taped before doing the taping.
- Firmly tape the ends so that they do not peel off.
- Always superimpose the tape while wrapping.

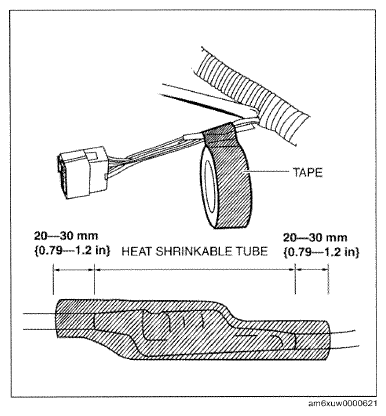

- Wrap the tape approx. 20 - 30 mm {0.79 - 1.2 in} beyond both ends of the heat shrinkable tubing.
Courtesy of MAZDA MOTORS CORP.
NOTE:

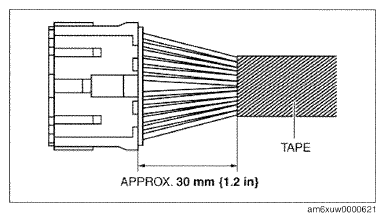

- If the wiring harness is bundled and taped, bind it approx. 30 mm {1.2 in}
away from the connector.
Courtesy of MAZDA MOTORS CORP.
