Automatic Transaxle Location Index

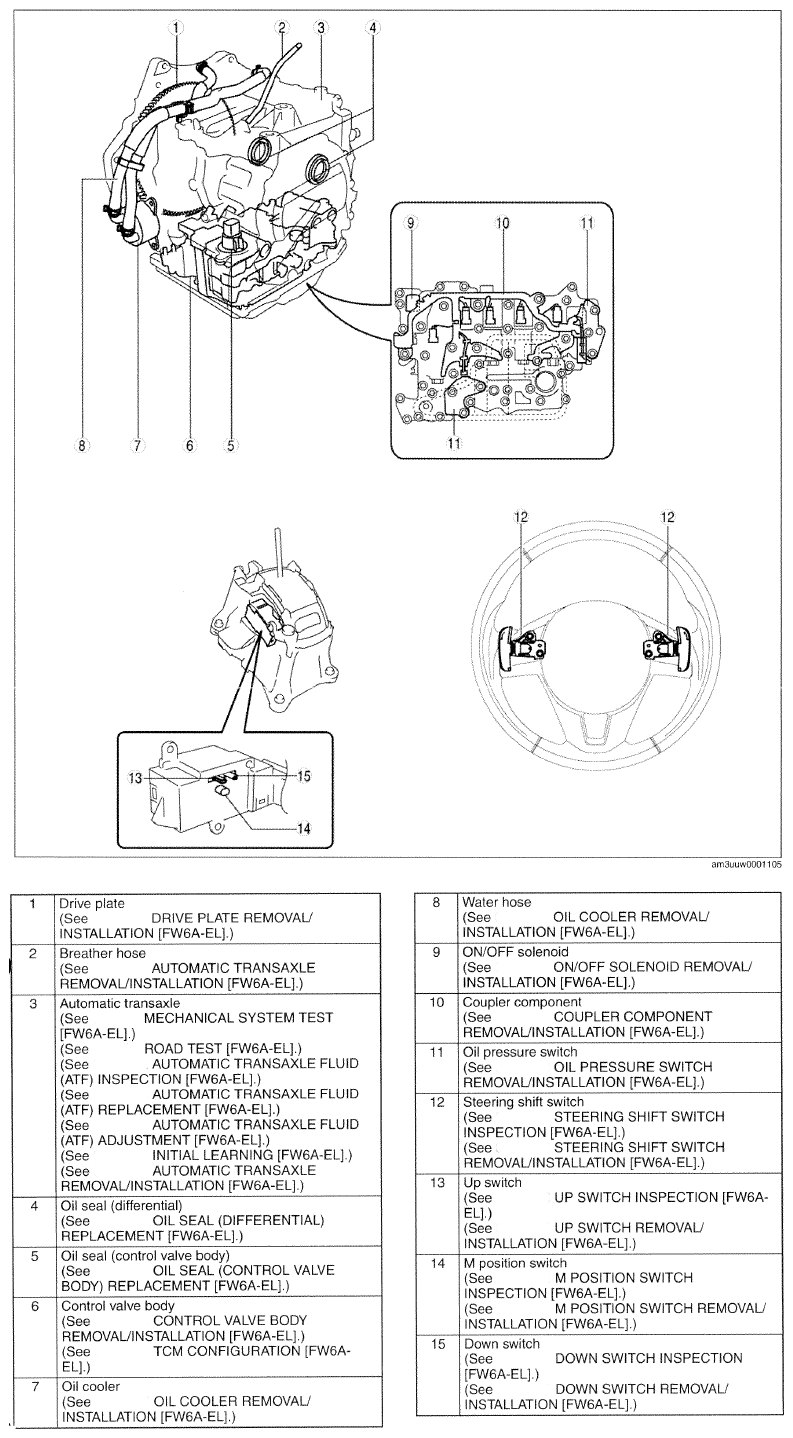

Fig 1: Automatic Transaxle Location Index (FW6A-EL)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
