Cable Outer End (Transaxle Side) Installation Note

  1. Assemble the cable outer end (transaxle side) to the bracket so that the marking is in the area of the arrow shown in the figure.

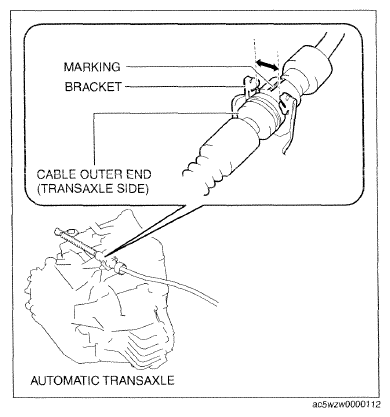

    Fig 1: Identifying Cable Outer End And Bracket Marking Area
    G09759713Courtesy of MAZDA MOTORS CORP.
