Indicator Removal/Installation: Notes
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
- Remove the upper panel. (See UPPER PANEL REMOVAL .) (See UPPER PANEL INSTALLATION .)
- Remove the selector lever knob. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
- Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION .)

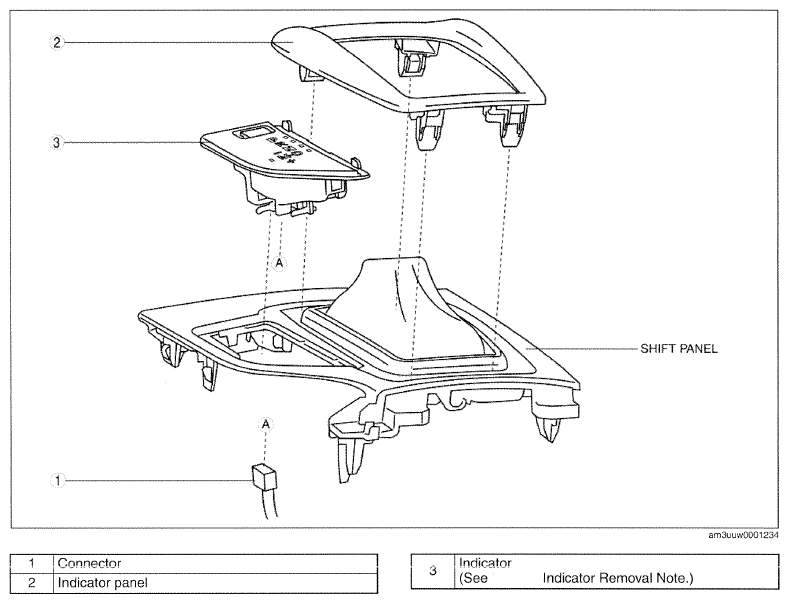

- Remove in the order indicated in the table.
- Install in the reverse order of removal.
