Front Abs Wheel-Speed Sensor Removal/Installation: Notes

1. Remove in the order indicated in the table.
2. Install in the reverse order of removal.
3. After installation, verify that there is no twisting in the front ABS wheel-speed sensor.

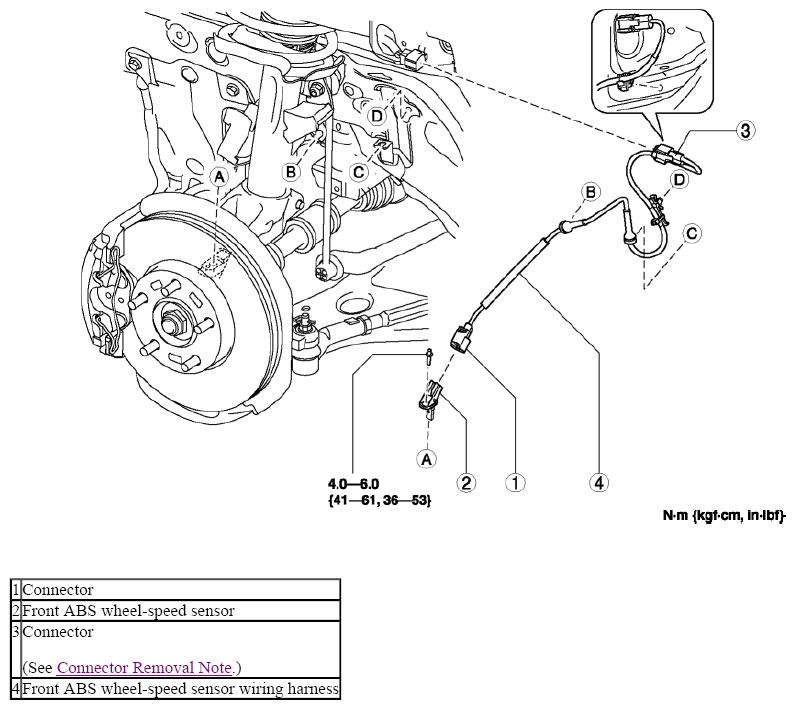

Fig 1: Front ABS Wheel-Speed Sensor Replacement Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.
